Manual round bending machine: Bend powerfully, control precisely

For craftsmen, metalworkers, and manufacturing companies with a demand for precision and durability. Our manual round bending machine of the RM series impresses with its robust construction, easy operation, and accurate bending results – completely without electric drives.

Round bending with feeling: full control instead of fully automatic

Those who want to bend sheets precisely do not always need a complex, motorized system. A manual round bending machine offers exactly what is often really important in practice: direct control, high flexibility, and absolute reliability – without electronics, no maintenance effort, no detours. Especially with small quantities, individual parts, or changing tasks, the manual solution shows its strengths. Instead of clicking through menus, you set the radius directly mechanically – quickly, intuitively, repeatably accurate. The machine does what the skilled worker specifies – and not the other way around.

This is what makes manual round bending machines so valuable:

Maximum control: The operator determines every movement – ideal for sensitive materials or tight radii.
Independence: No electricity needed – perfect for workshops, repair jobs, or mobile applications.
Economy: No complex controls, minimal maintenance – durable technology with low operating costs.
Versatility: Cylindrical, conical, or with special rolls – one machine for many tasks.

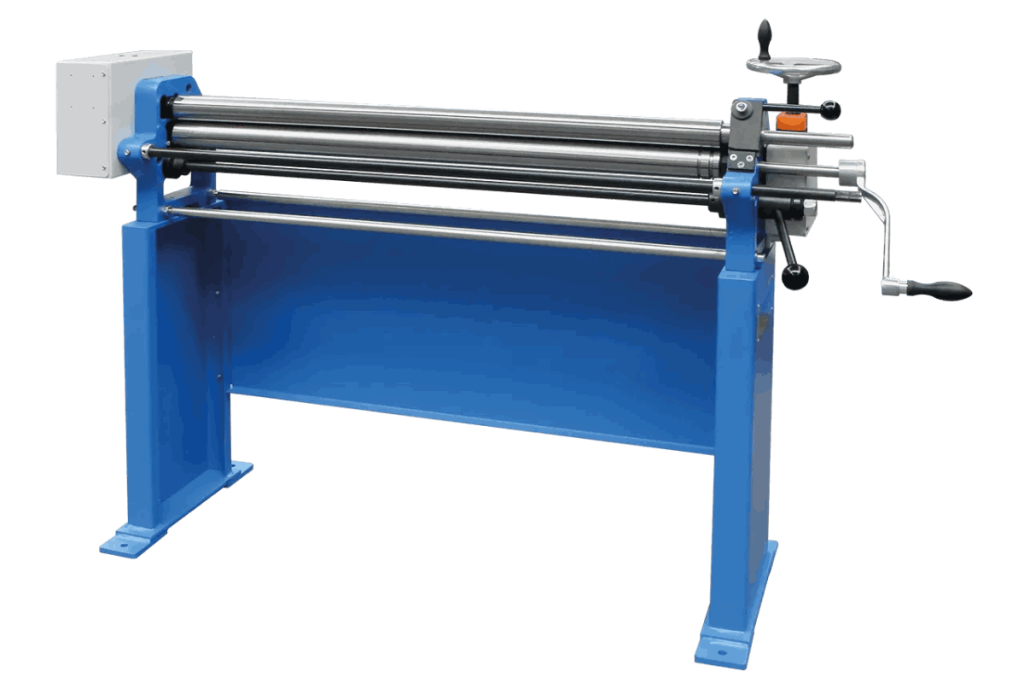

Our Manual Round Bending Machine

Our manual three-roll round bending machines of the RM series are designed for precise and reliable bending work in sheet metal processing. They are made of a solid steel construction that ensures stability and durability. We offer different model sizes, allowing for bending sheets of varying thicknesses and usable lengths. The top roll can be swung out so that the finished workpiece can be easily removed, while the lower rolls can be adjusted to the respective sheet thickness. The bending roll is infinitely adjustable to allow for precise adaptation to the material. The manual control allows for accurate and repeatable operation, making our machines suitable for both custom manufacturing and small series productions.

Modell	Nutzlänge Max. [mm]	Blechdicke Max. [mm]	Durchmesser Walzen [mm]
RM 20	330	0.5	20
RM 30	530	0.6	30
RM 42	1030	0.6	42
RM 52	1030	1.2	52

Special Accessories

Groove in the top roll: Allows for the creation of folds in the sheet.
Wire inserting grooves: Enables the rolling in of wire reinforcements for special applications.
Special rollers: Available in hardened, tempered, ground, or rubberized versions for different material requirements. Rollers with special contours are available upon request.
Side stop for conical rounding: Supports bending of conical workpieces.
Support table with side stop: Ensures stable workpiece guidance for uniform bending results.

Your advantages

Our manual round bending machines of the RM series are uncompromisingly designed for precision, efficiency, and practicality. Every detail is functional: for precise results and long-lasting reliability.

Precise bending with direct control

The stepless adjustment of the bending roller allows for millimeter-accurate adjustments. The operator controls every movement themselves – ideal for complex radii, thin-walled sheets, or changing geometries.

Robust, torsion-resistant steel construction

The machine base is made of solid steel and designed for maximum stability in daily use. This ensures that the roller geometry remains permanently precise, even after repeated bending cycles.

Flexible adjustment to various sheet thicknesses

The lower rollers can be adjusted to the respective material thickness. This optimally guides the sheet – allowing for clean curves without distortion or draw-in.

Swiveling upper roller for easy removal

The finished workpiece can be quickly and damage-free removed from the machine via the swiveling upper roller, even with tight diameters.

Maintenance-free mounted rollers

All rollers are play-free and do not require external lubrication. This minimizes wear, reduces downtime, and lowers operating costs.

Expandable with practical accessories

With accessories like wire insertion grooves, folding grooves, special rollers, or a support table, the machine can be precisely expanded for specific applications.

Contact

Are you looking for a durable, precise, and user-friendly bending machine for your workshop or production? Let our experts advise you!
